Gallium Nitride

Gallium Nitride(GaN) is an exciting material that is enabling key advances in some important technologies. GaN High Brighntess LEDs (HBLEDs) have already revolutionised lighting, GaN laser diodes are used for high speed data transmission while GaN based RF devices will soon be applied for efficient power transfer and mobile phone base stations. GaN may be dry etched usingInductively Coupled Plasma (ICP),Reactive Ion Etching (RIE)orIon Beam Etch (IBE). It can be deposited usingALD.

GaN

Process expertise applied to demonstrate excellent surface roughness with low damage and optimised etching rate.

More on ICP Request more information

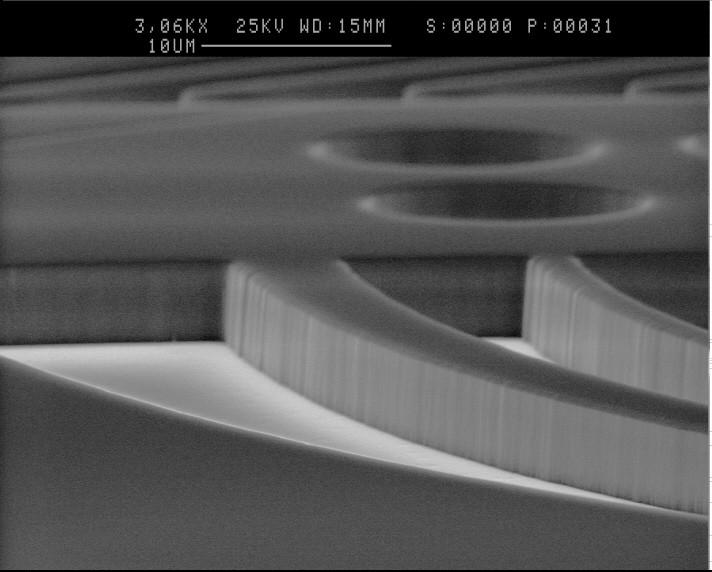

GaN ICP Etching

Anisotropic profile achieved at competitive etching rate.

  • Single wafer size:up to 200mm
  • Batch size:up to 6x2"
More on RIE Request more information

Good control of profile with excellent selectivity.

More on IBE Request more information

High material quality.

More on ALD Request more information
