Xplore.

The Xplore EDS detector for routine analysis in the SEM. The introduction of Xplore complements our comprehensive EDS portfolio and means that AZtecLive real-time chemical imaging is now available to all users.

15mm2和30mm2传感器尺寸
Guaranteed Mn Ka<129eV resolution on users microscope
Max count rates in excess of 1Mcps
Fully field replaceable components ensure Minimal downtime and Maximum uptime
Available with two software platforms:

AZtecLiveLite
AZtecLiveOne

Request Pricing Add to quote list View this product on your quote list

Xplore.is the next generation of EDS detector for routine analysis in the SEM. The detector is available in 15mm²和30mm.²sensor sizes and is designed for a wide range of applications.

Xplore.uses much of the new technology introduced and showcased in our larger Ultim Max detectors. It offers rapid data collection for live EDS analysis, while still guaranteeing the automatic reliable results required for routine analysis applications.

Speed- 具有X1脉冲处理器的极端电子器件的组合允许Xplore以1,000,000cps的计数速率映射样本，并准确地量化为100,000cps的组成

Sensitivity- New compact design offers a small footprint and unique capability for in-field repair for maximum up-time and minimum service requirement

Extreme Electronics- Xplore incorporates tried and tested Extreme Electronics, which provides the lowest noise signal detection and processing. They ensure excellent energy resolution and spectrum quality is achieved at high count rates, enabling a guarantee of 129eV Mn Kα resolution at 100,000cps

下面使用Syney比较表来帮助您为您之间选择最佳的软件选项AZtecLiveOne和azteclivelite。

	AZtecLiveOne	AZtecLiveLite
Analyser Navigator/Step (Spectrum Acquisition)	✔	✔
Point&ID Navigator/Step (Spectrum Acquisition)	✔	✔
映射导航仪/步骤（地图采集）	✔	✔
LineScan Navigator/Step (LineScan Acquisition)	✔	✔
LiveSpectrum for AZtecLiveOne with Live Spectrum Viewer (Live chemical analysis)	✔	✘
LiveMapping for AZtecLiveOne (Live Chemical Imaging)	Optional	✘
AZtecOne AutoLock (Drift correction for AZtecLiveOne software)	Optional	✘
AZtecLiveStep (Live Chemical Imaging)	✘	✔
AZTecliveRetReace（在“实时”分析期间访问的记录位置）	✘	Optional Upgrade Pack
图像注册（使用导入的图像在显微镜中导航） - 也适用于SEM图像	✘	Optional Upgrade Pack
AZTEC标准化管理器（输入用户标准）	✘	Optional Upgrade Pack
Report Template Editor (Create your own report templates)	✘	Optional Upgrade Pack
自定义模式（可配置的用户界面）	✘	Optional Upgrade Pack
AZtec AutoLayer (Automatically combine electron image and X-ray maps in a single image)	✘	Optional Upgrade Pack
阿兹特克TruMap(重叠和背景校正地图ping)	Optional	Optional
Aztec Autolock（Azteclive软件的漂移校正）	✘	Optional
AZtec AutoPhaseMap (Automatic phase analysis)	✘	Optional
AZtec QuantMap (Quantitative Mapping and Linescanning)	✘	Optional
AZtec Large Area Mapping	✘	Optional
AZtec MapQueue (Automated point map acquisitions)	✘	Optional
AZTecFeature分析（自动粒子分析软件）	✘	Optional
Aztecsteel（非金属夹杂物钢的自动分析和分类 - 需要MS Office和Aztecfeature）	✘	Optional
AZtecGSR Package (Gun Shot Residue analysis – requires AZtecFeature)	✘	Optional
AZTecClean（衡量部件的技术清洁到工业标准 - 需要Aztecfeature）	✘	Optional
AZtecAM (Automated analysis of particles used in Additive Manufacturing– requires AZtecFeature)	✘	Optional
Aztecmineral - 自动获取从地质材料获取EDS数据和形态学信息。伴随的后处理应用程序ProtealySer2包括对包含> 4000矿物组合物的数据库进行分类的选项。	✘	Optional
AZTEC LayerProbe（计算多层结构的厚度和组成）	✘	Optional
AZtecLiveOne for AZtecLive (Add AZtecLiveOne functionality to an AZtecLive installation)	✘	Optional

Cement

矿物样品

Primary Circuit Board

Counterfeit pain relief tablet

Paper sample

Polymer pouch

万博电脑网页版登录

高吞吐量XPLORE硬件，易于使用的软件和AZTECLIVE化学成像的组合是应用领域的获胜组合，例如：

Failure Analysis
Quality Control
SEM和法医调查

Ideal for 'Quality Control' applications

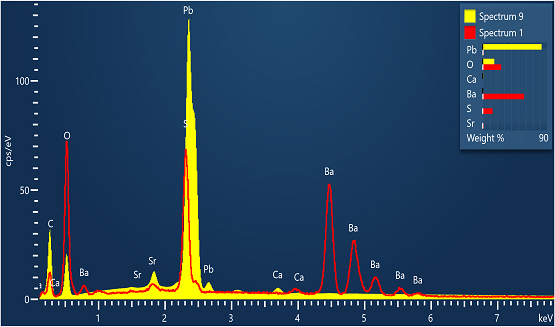

Quickly spot any differences between a production sample and a 'control' sample with instant Live spectrum compare.

识别伪造或专利侵权产品

伪造制药产品的生产和销售是一个全球性问题（损失的估计范围为每年160美元至2000亿美元）。此外，对于货币损失，存在潜在有害产品的风险，使其进入消费者使用。
AZtecLive can help you easily see key element distribution and chemistry differences or similarities between branded products and suspected counterfeits.

Layer and composites

Paper manufacturers use additives and coatings to give their products different properties. For example, calcium carbonate is used to reduce paper shrinkage and improve whiteness.
准备样本的横截面是调查其结构的好方法。X射线图覆盖在电子图像上清楚地区分层，涂层和添加剂分布。

使用AzteClive实时与您的样本互动

The AZtecLive interface enables real-time chemical investigation of the samples, viewing Live TV rate electron image and X-ray maps until you find a feature of interest.
See more of AZtecLive in action
