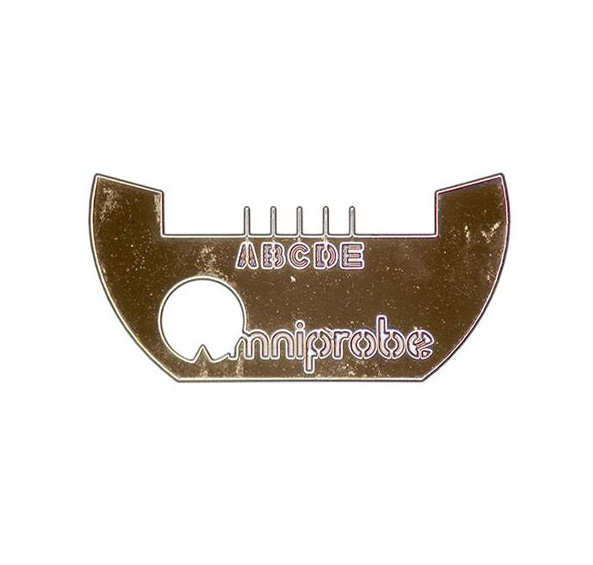

5 Post Copper Lift-Out Grids (Box of 100)

5 post copper lift-out grids specifically designed for in-situ lift-out.

These grids include multiple indexed mounting locations, all with vertical bar attachment surfaces.

Now with lower profile sides for easier access to outermost posts with a 3mm diameter.

They come packaged in glassline envelopes. A key feature of these grids is that they have a sharp edge at the downset. This sharp edge makes it very easy to see exactly where to place the lamella when mounting to the side of a post.

Diameter : 3mm Thickness (nominal) : 40 μm

Post Downset (nominal) : 10 um

Unique Feature : 5th post is “E”
